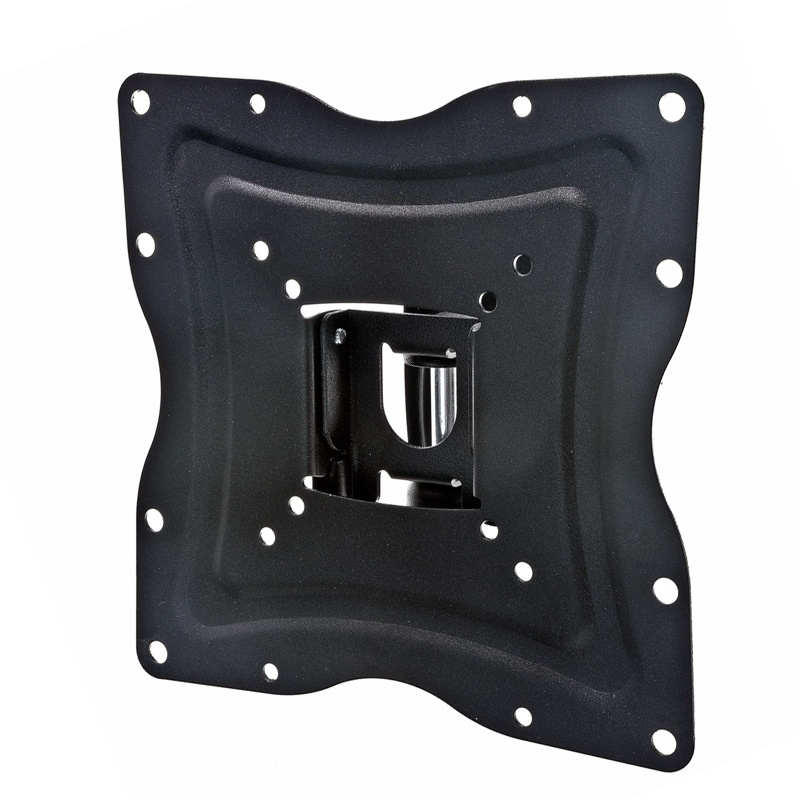

U11C TV LCD MOUNT 10-42 SHORT

Universal, sturdy wall mount for plasma and LCD TVs and monitors weighing up to 25 kg and with a screen size from 10” to 42”. Holder customized for mounting screens in VESA standards 200x200, 200x100, 100x100, and 75x75 with screw spacing from 7.5 cm to 20 cm. Thanks to the mounting holes in the support plate of the bracket, the product can be mounted on concrete and wooden walls (it must be screwed into the beams). After mounting the bracket, the distance from the wall is approximately 54 mm. Mounting method: - attach the mounting plate to the wall and use a level to mark the spot for drilling holes - insert the wall plugs and screw the plate to the wall with washers - mount the brackets on the TV, select the appropriate mounting screws and washers depending on the device's holes - hang the TV on the wall - adjust the appropriate tilt angle (-5° to +15°) - tighten the tilt adjustment knobs

---

weight: 860g
