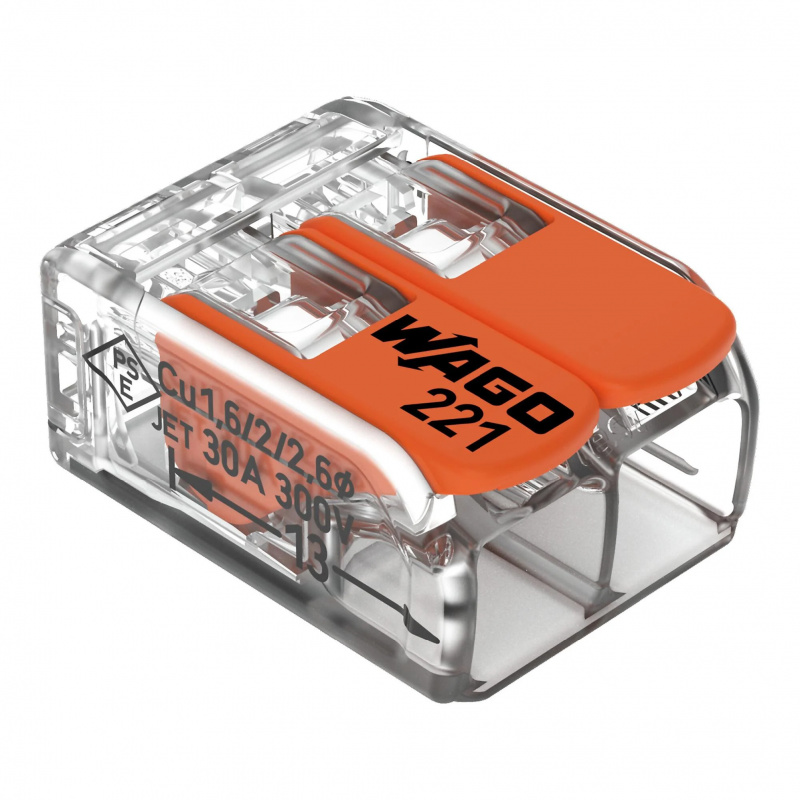

WAGO Quick Connector 2x6mm 221-612

Main product features:

Easy operation: lift the lever, insert the cable, lower the lever

Convenient installation of wires from 0.5 to 6 mm²

Installation of all types of conductors

Time savings for installers and equipment manufacturers

Fast connection of powerful devices

Safety during the installation of long cables with larger cross-sections

Mounting adapter for installation in compliance with standards

Option for assembly according to the customer's specific requirements

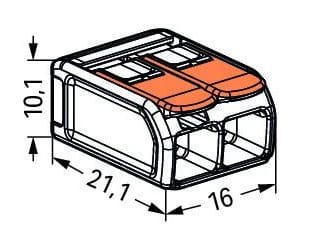

Technical specifications: Rated overvoltage (II/2): 4kV Rated voltage (II/2): 450V Rated cross-section: 6 mm² Single-core conductor: 0.5... 6 mm² / 20... 10 AWG Conductor Material : Material: Copper Terminal Release Method: Cable Connection Technology: Lever Rated Current: 41 A Width: 16 mm Height: 10.1 mm Depth: 21.1 mm
