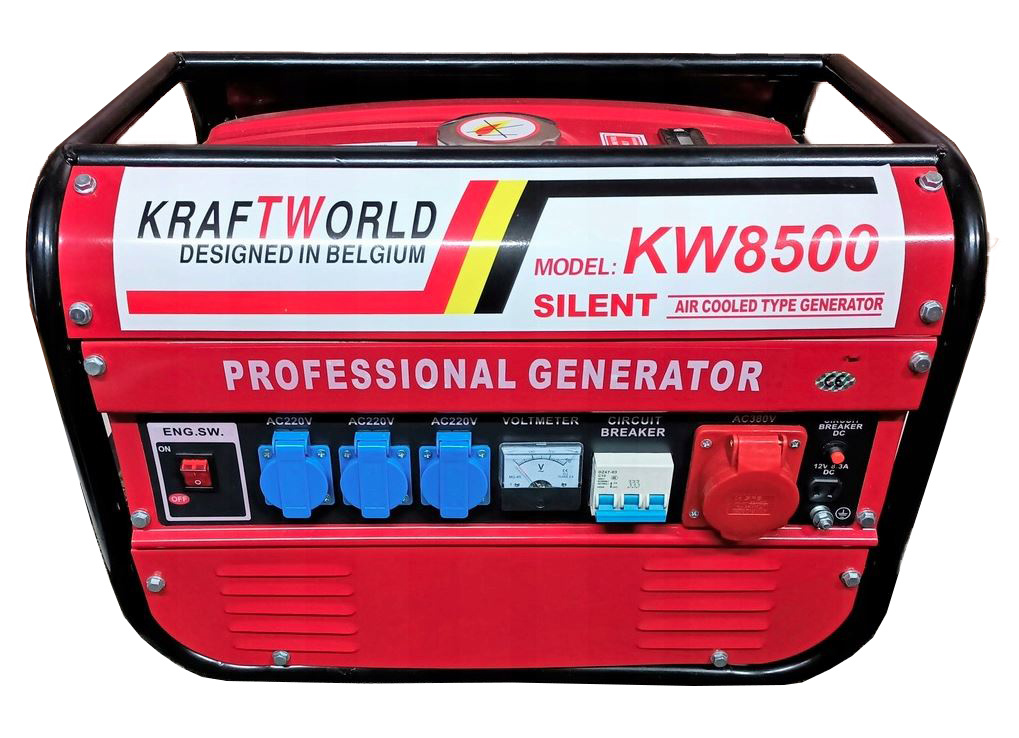

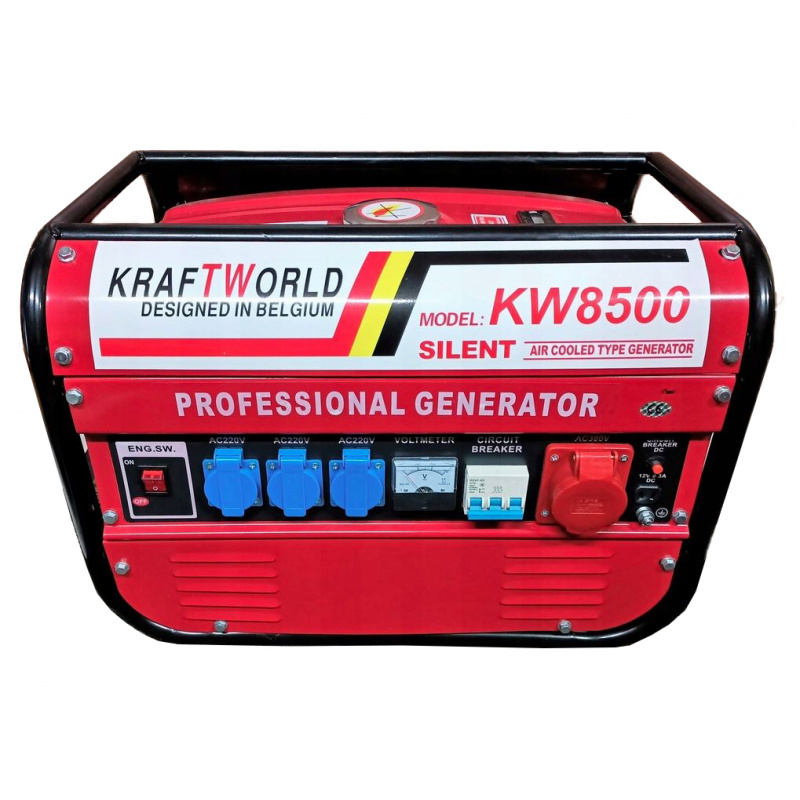

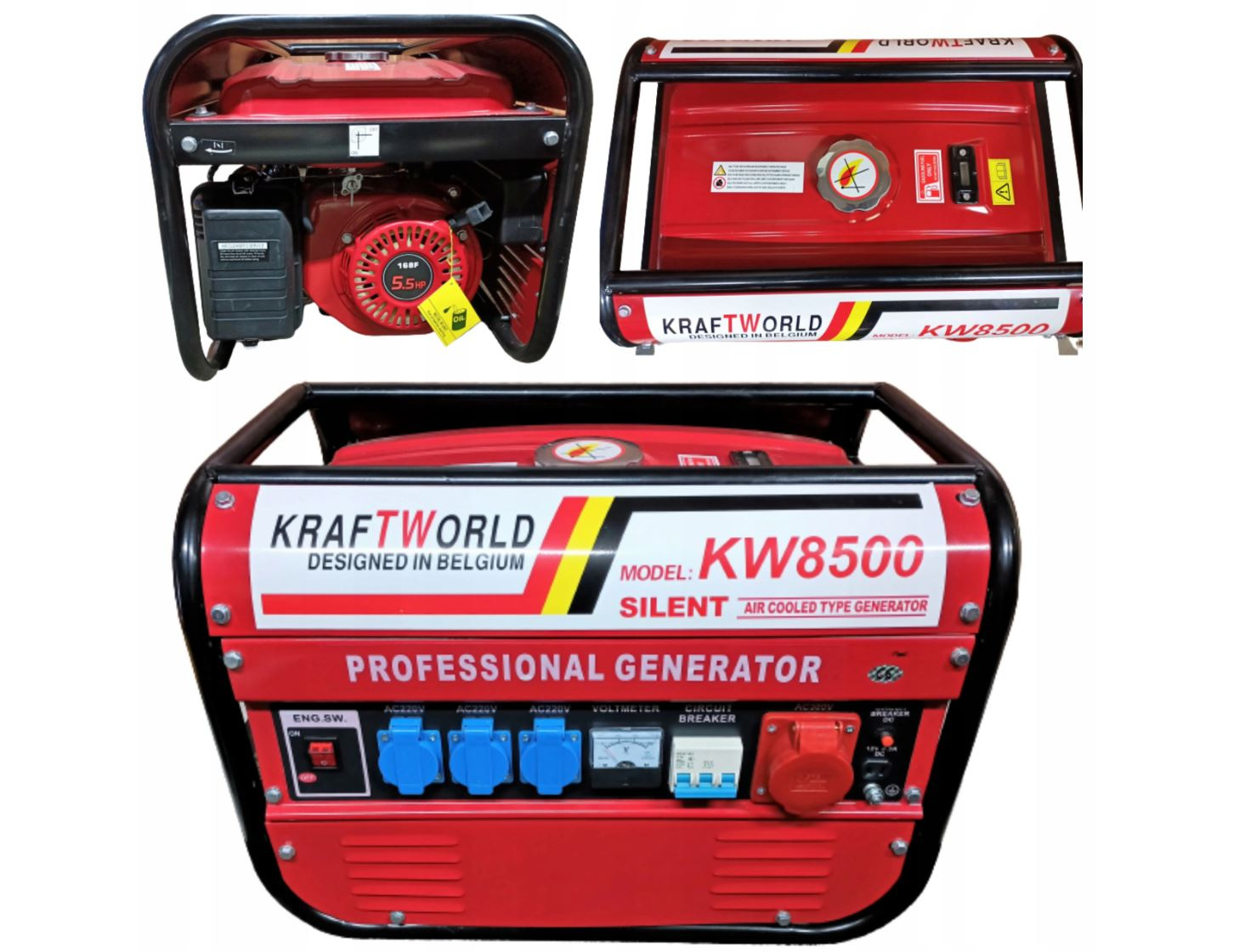

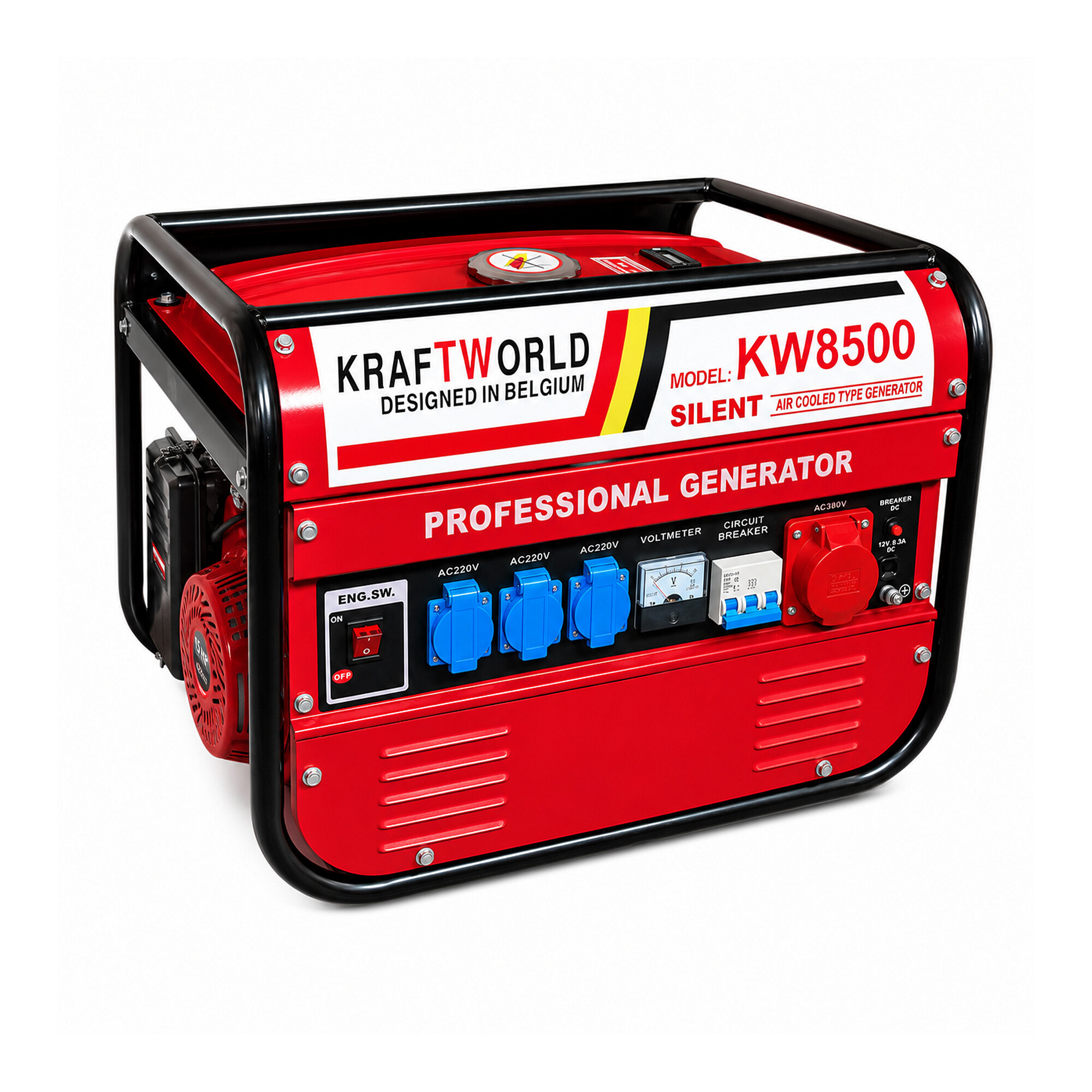

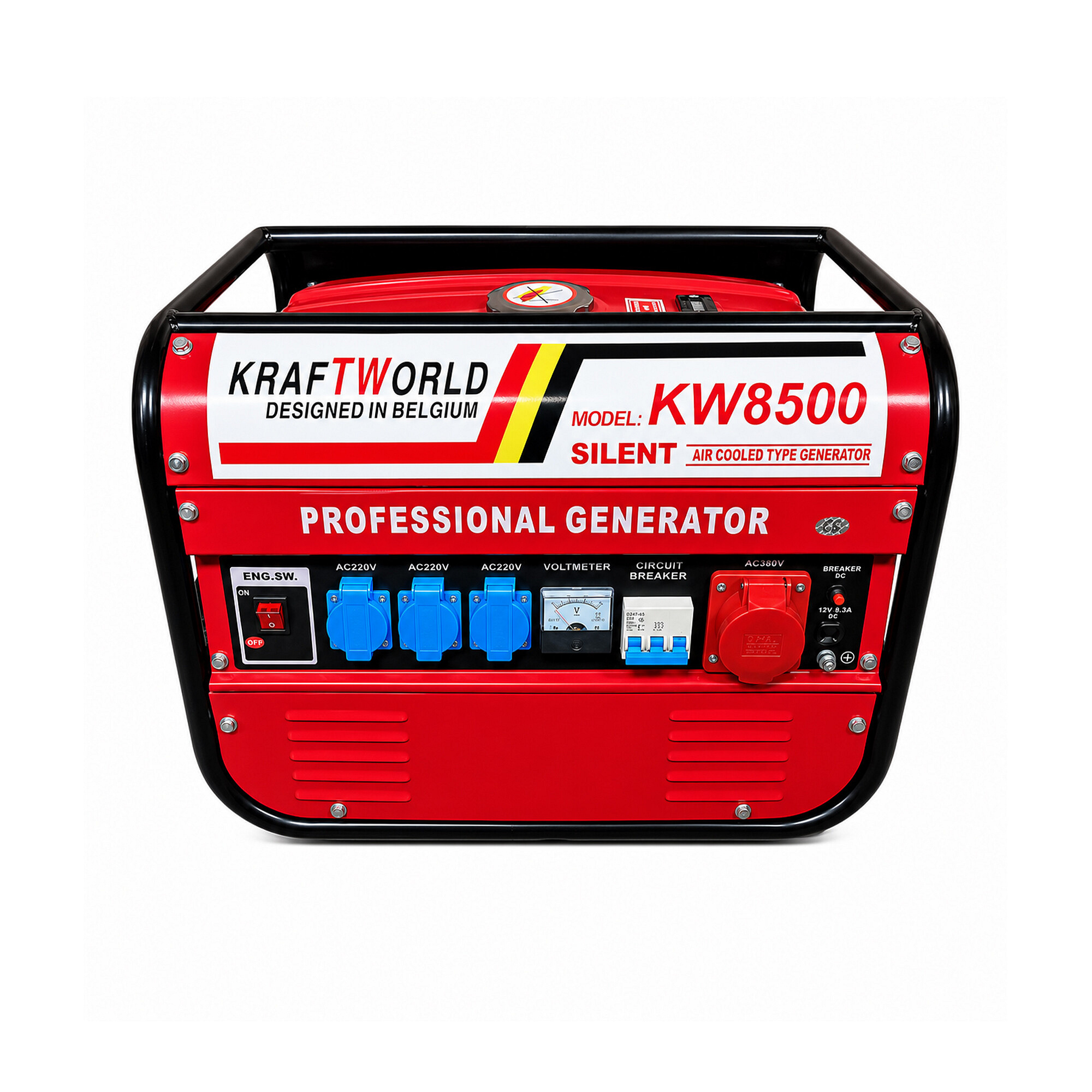

KraftWorld Three-phase petrol generator KW-8500 2 kW

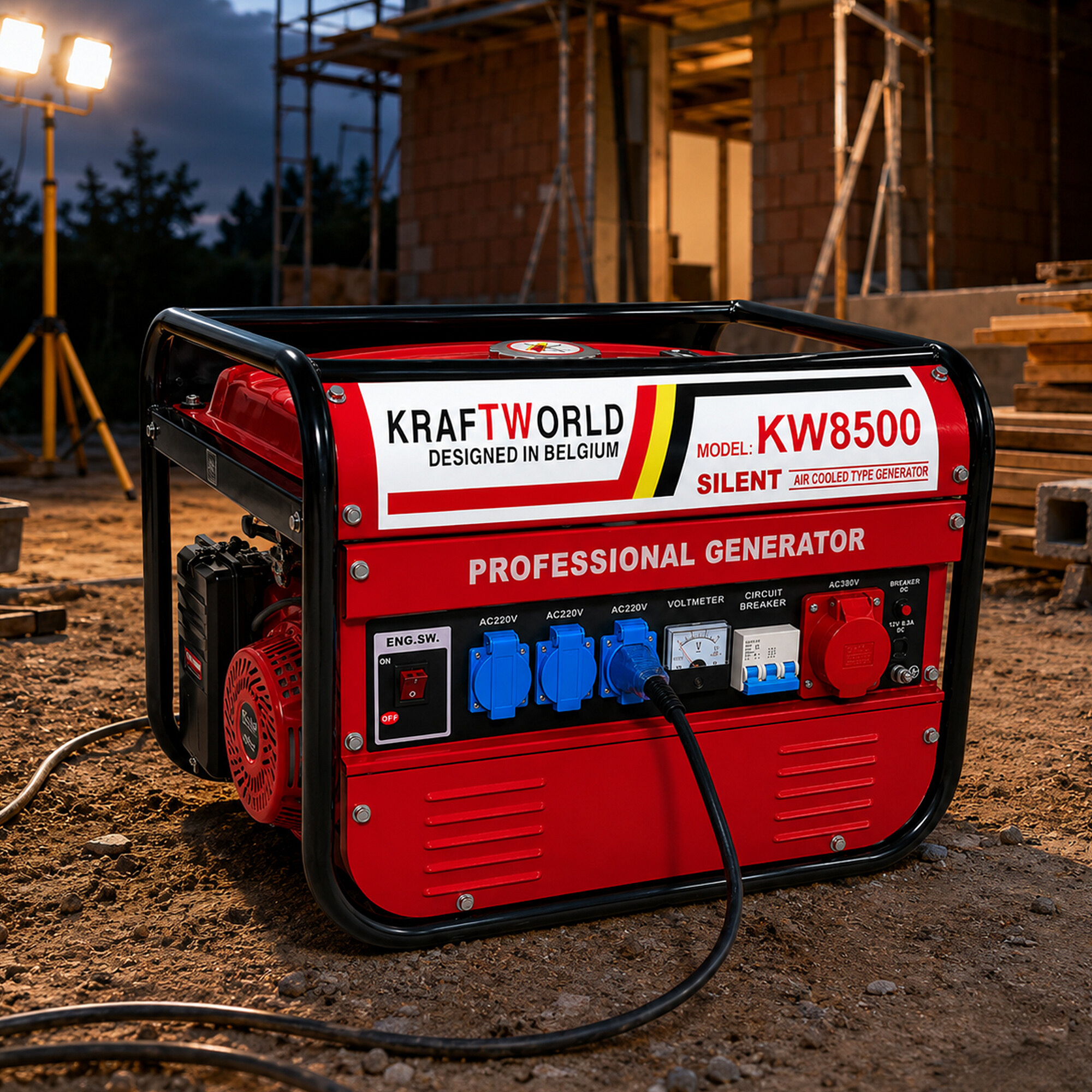

The generator is designed for less demanding use in assembly work, at home, or for recreational purposes.A high-quality current generator with a rated power of 2000 W, designed as a drive for all types of electrical devices in locations without access to the electrical grid.

The portable three-phase generator is designed to generate alternating current 220V / 380V using a four-stroke combustion engine with a displacement of 163 cm3 and a power of 5.5 HP.

The generator is equipped with an electronic AVR regulator, which helps maintain the output voltage stable and less dependent on feedback from the load by the appliance. This means fewer voltage fluctuations or "voltage spikes".

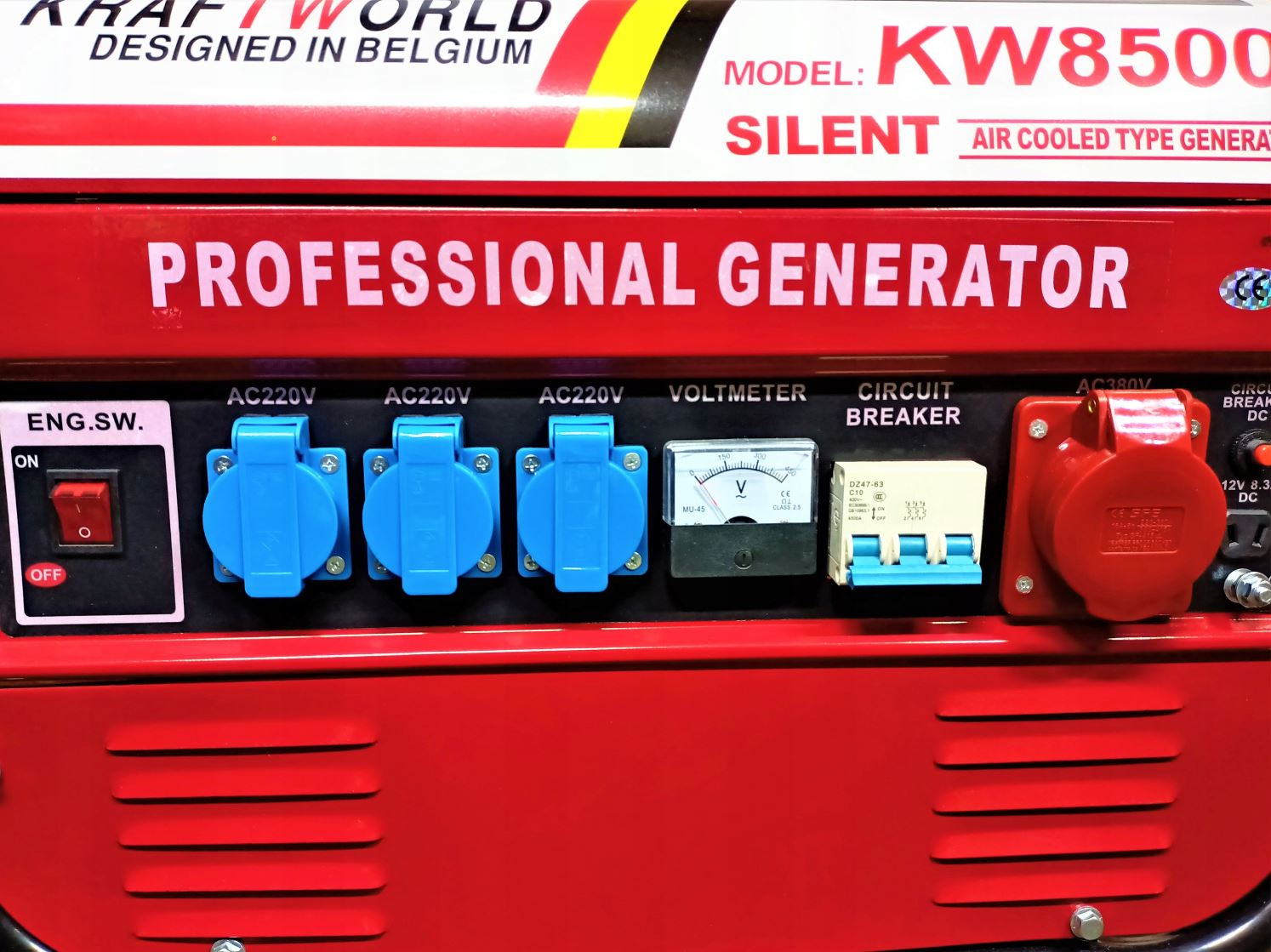

The generator is also equipped with a voltmeter that measures the output voltage, automatic oil level control, a circuit breaker protecting the generator from overload, and a 12V output for battery charging. If the generator is not powering multiple devices, it operates at a lower speed. When the load increases, the generator will automatically increase speed and rotation, adjusting to the energy demand.

The sturdy steel frame provides protection against potential damage and also serves as a transport handle for easy handling of the generator.The generator is equipped with a 15-liter fuel tank with a fuel level indicator.The average fuel consumption of the engine is 1.2 l/h.

Specifications of Three-phase Gasoline Generator.

Features and Functions:

• Automatic shutdown function when oil level drops
• Very low noise
• Easy operation
• Output voltage regulation with AVR system protects your electrical appliances from damage
• 12 V socket for battery charging
• Long endurance thanks to a large tank
• Tank with level indicator

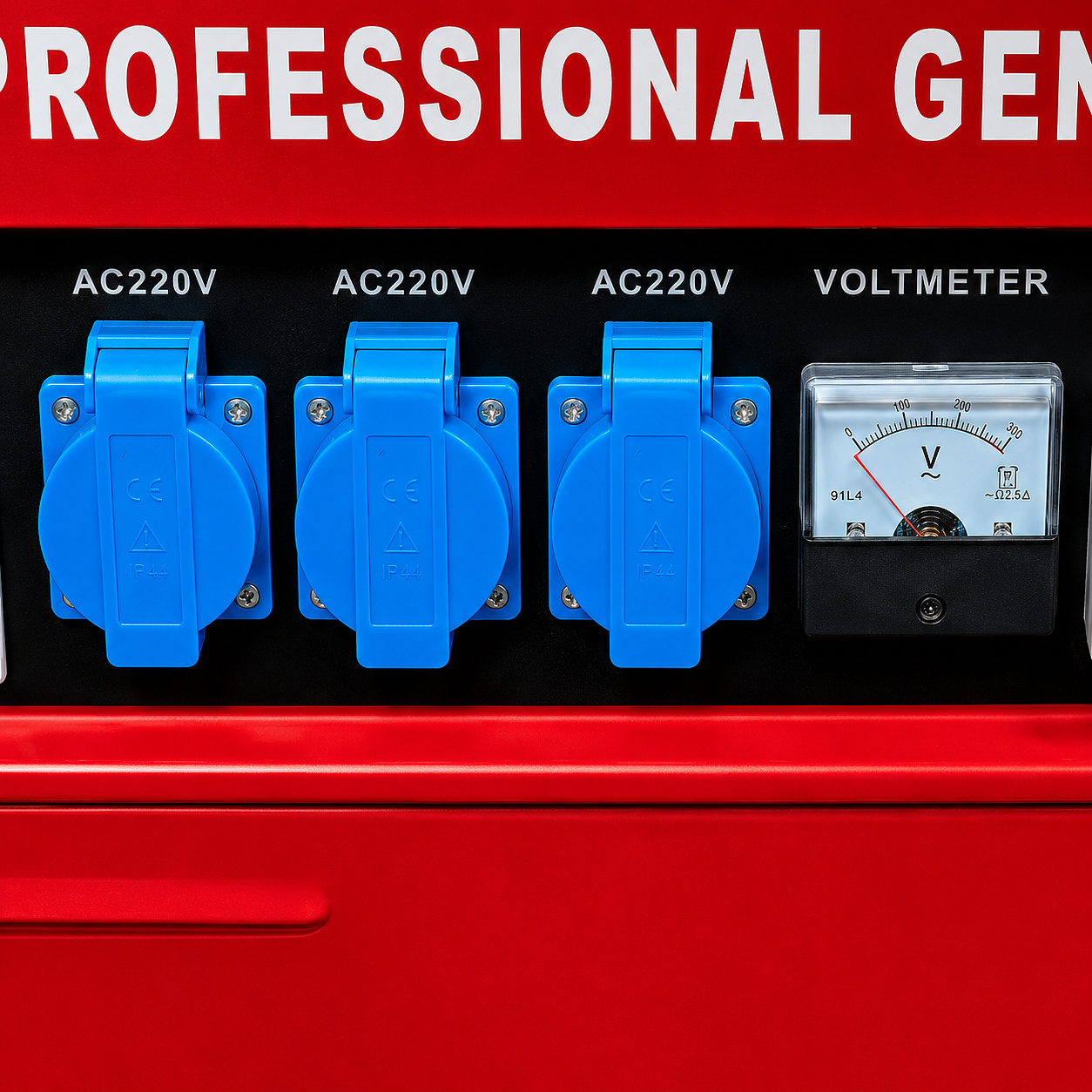

• Built-in voltmeter
• Air-cooled four-stroke engine

Parameters:

• Engine type: Gasoline, 1-cylinder, 4-stroke, air-cooled
• Engine displacement: 163 ccm
• Engine power: 4.1 kW
• Continuous power: 1800 W
• Maximum power: 2000 W
• Output voltage: 3×230V, 1×400V, 1×12V
• Output frequency: 50 Hz
• Generator dimensions: 60.5 x 43.0 x 42.0 cm.
• Voltmeter: Yes
• Power regulation: Automatic AVR
• Noise level: 68 dB/7m
• Fuel level indicator: Yes
• Oil capacity: 0.6 l
• Tank capacity: 15 l
• Fuel consumption: 1.2l/h
• Starting: Manual
• Fuel: BA95 or BA98 unleaded gasoline
• Manufacturer: KraftWorld
• Warranty: 24 months
