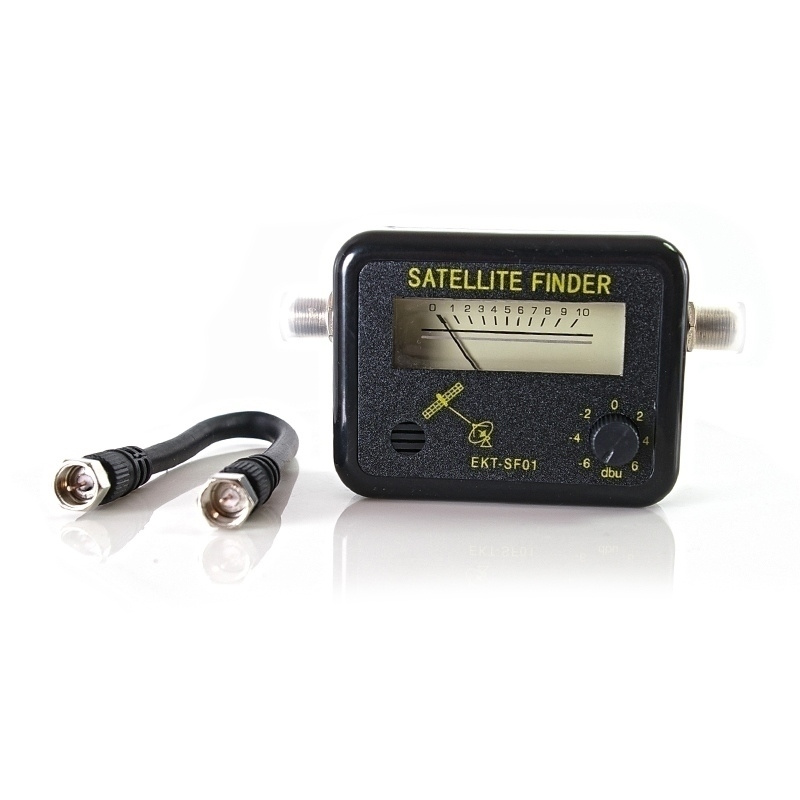

K767 SATELLITE SIGNAL INDICATOR

SATELLITE Finder - a simple, easy-to-use device designed to set the optimal signal level received by a satellite dish. The meter was equipped with a deflection signal level indicator and a signaler with variable sound intensity (variable sound modulation), which facilitates precise and quick antenna positioning. Precise adjustment of an analog or digital antenna is possible thanks to indicators with adjustable sensitivity. The construction of the meter ensures very simple operation. Technical specification: - frequency range: 950 - 2150 MHz - range: -25dBm ~ +75dBm - measured level range: LNB gain 52-60 dB - gain: 10 dB - sensitivity: 7uV at 55dB gain, 15dB three carrier C/N - power supply from tuner: 13-18 V D
