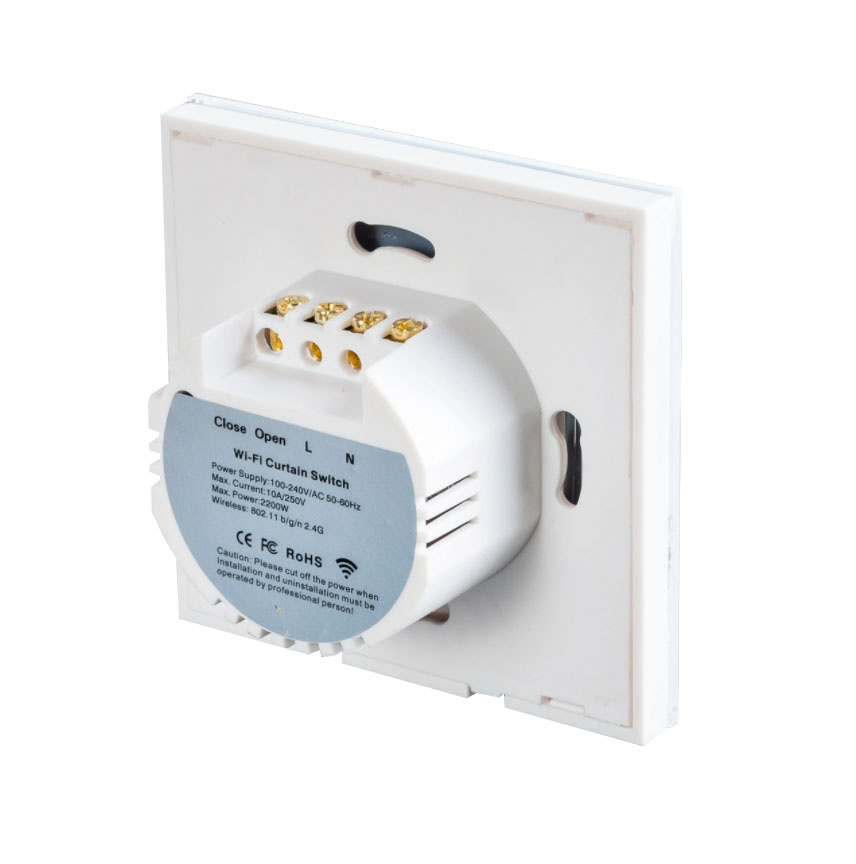

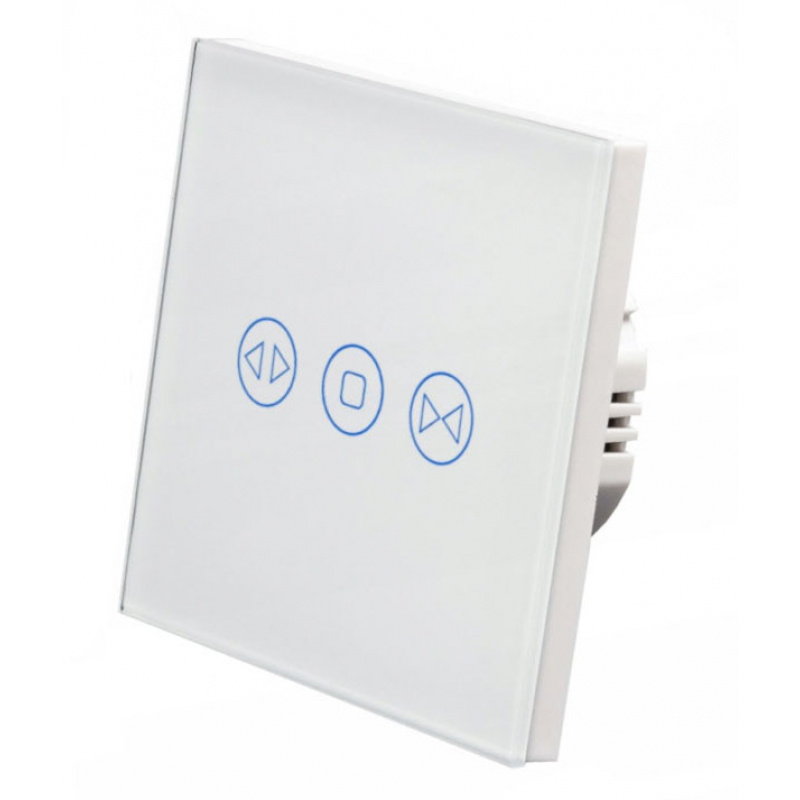

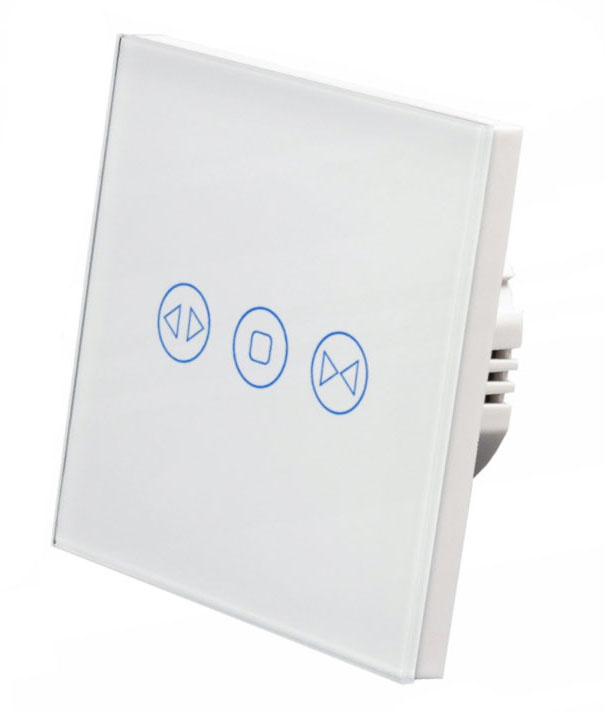

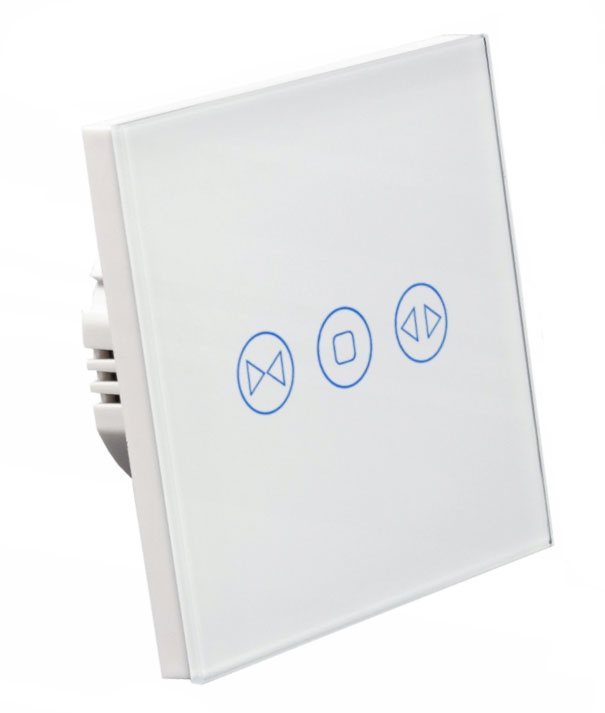

Glass touch switch for WIFI roller shutters - white

Touch switches are modern devices that work with both conventional and LED light sources. The switch has a glass front panel to further extend its life.

The switch has the following functions (from left to right): open, stop, close. No need to hold the button - just one touch of the button. The middle STOP button stops opening or closing at any time. The switch fits into a standard box and is mounted on the screws included with the switch.

Technical data:

• power supply - 110/230V
• power consumption in idle state - ~0.02W
• minimum load for one circuit - 3W
• load - conventional power supply 3-300W / LED 3-150W
• material - plastic, glass
• switch colour - white
• dimensions - 8,6 x 8,6 x 3,6 cm / 1 cm thick after wall mounting
• diameter of mounting hole - box ø60
• tightness class - IP44
• lighting colour when not in use - blue
• certification - CE, RoHS
