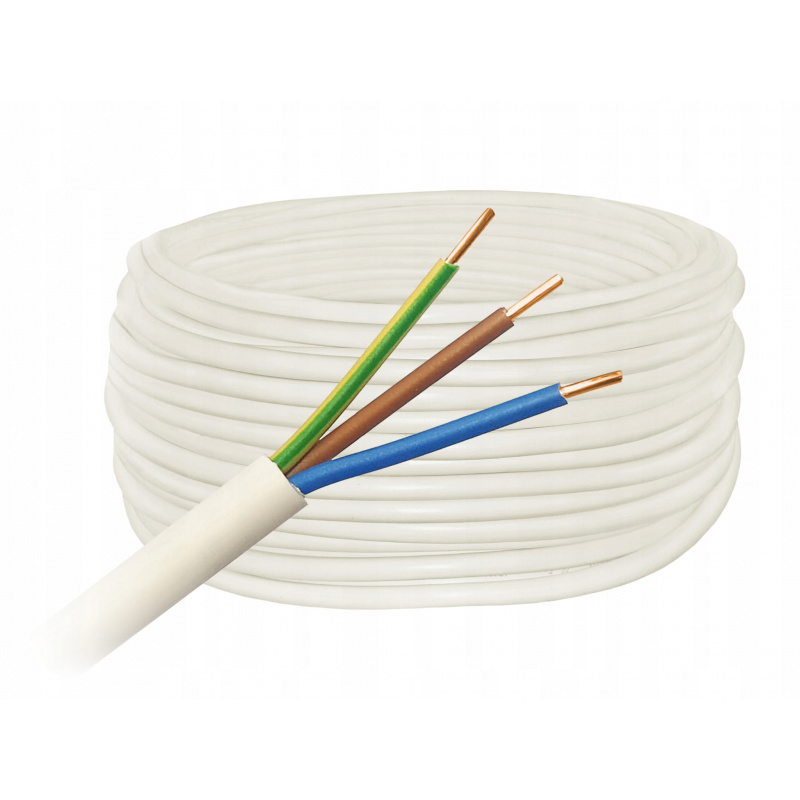

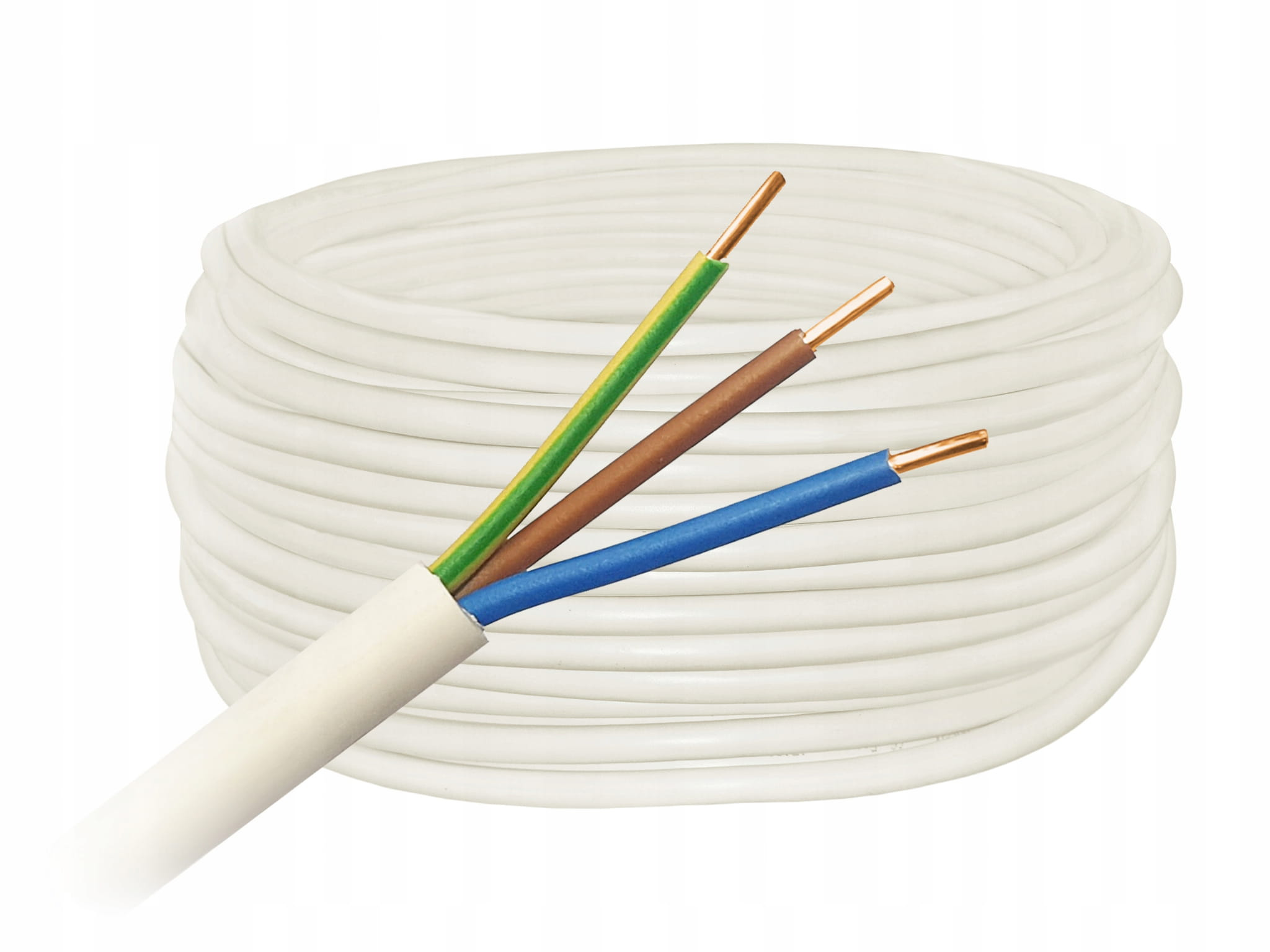

Electric cable YDY round wire 3x1.5 mm

Main product features:

Cable name: YDY cable with copper conductors with polyvinyl chloride insulation and sheath - round

use: For permanent installation in dry and damp rooms, on plaster and under plaster

conductor: class 1 copper wire

operating temperature: -40 degrees C to +70 degrees C

rated voltage: 450/750V

Number of wires: 5050/450: 3

the price is for 1 regular meter.

Technical data:

Rated voltage: 450/750V

Permissible operating temperature: 70 °C

Standard: PN-EN 50525-1: 2011

Permissible ambient temperature of the cable during installation: 70 °C

Wire designation: colour

Class reaction to fire according to EN 13501-6: Eca

Sheath/insulation colour: White

Number of wires: 3

Conductor insulation material: polyvinyl chloride (PVC)

Outer shell material: polyvinyl chloride (PVC)

Rated voltage U: 750 V

Rated voltage U0: 450 V

Nominal conductor cross-section: 1.5

Protective wire: yes
